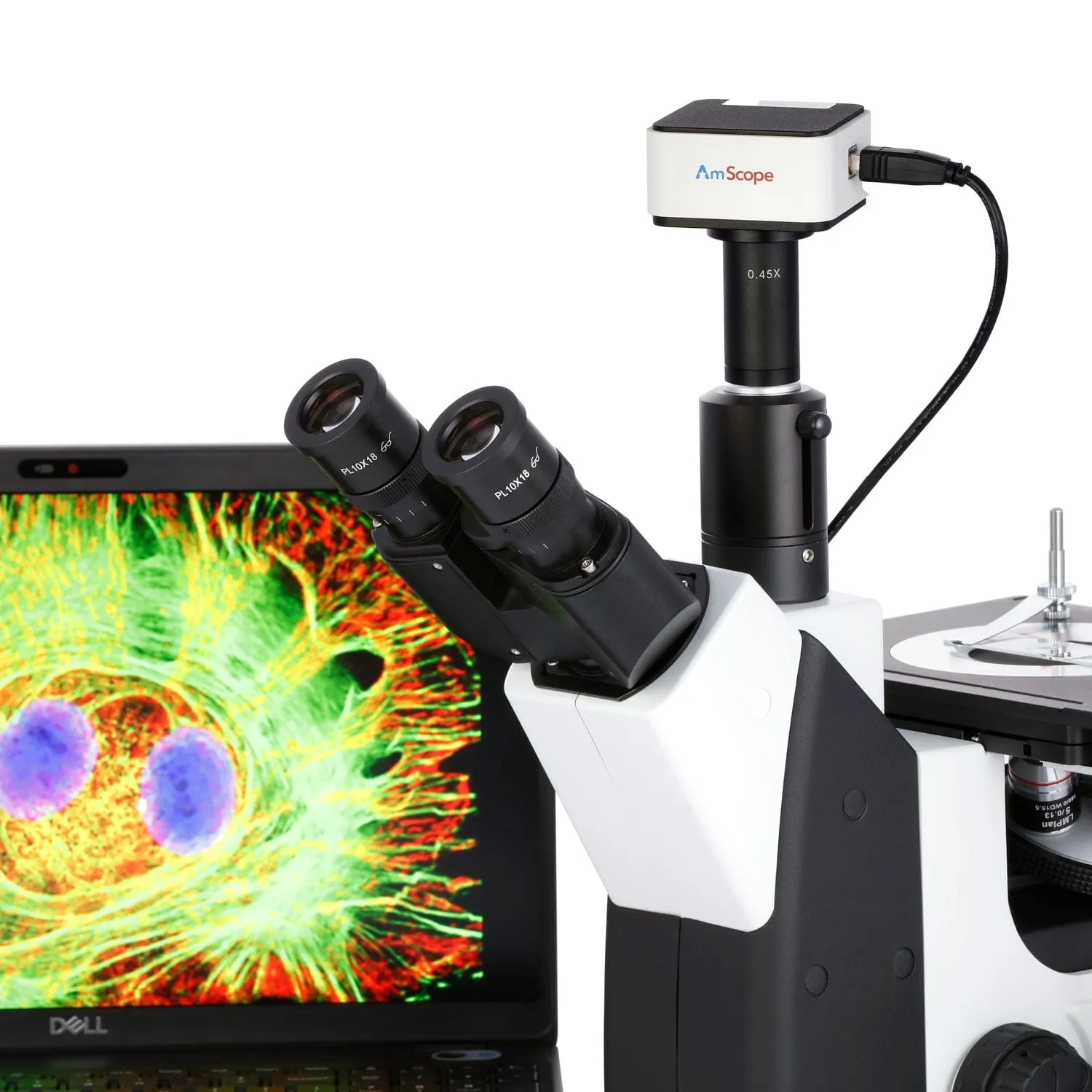

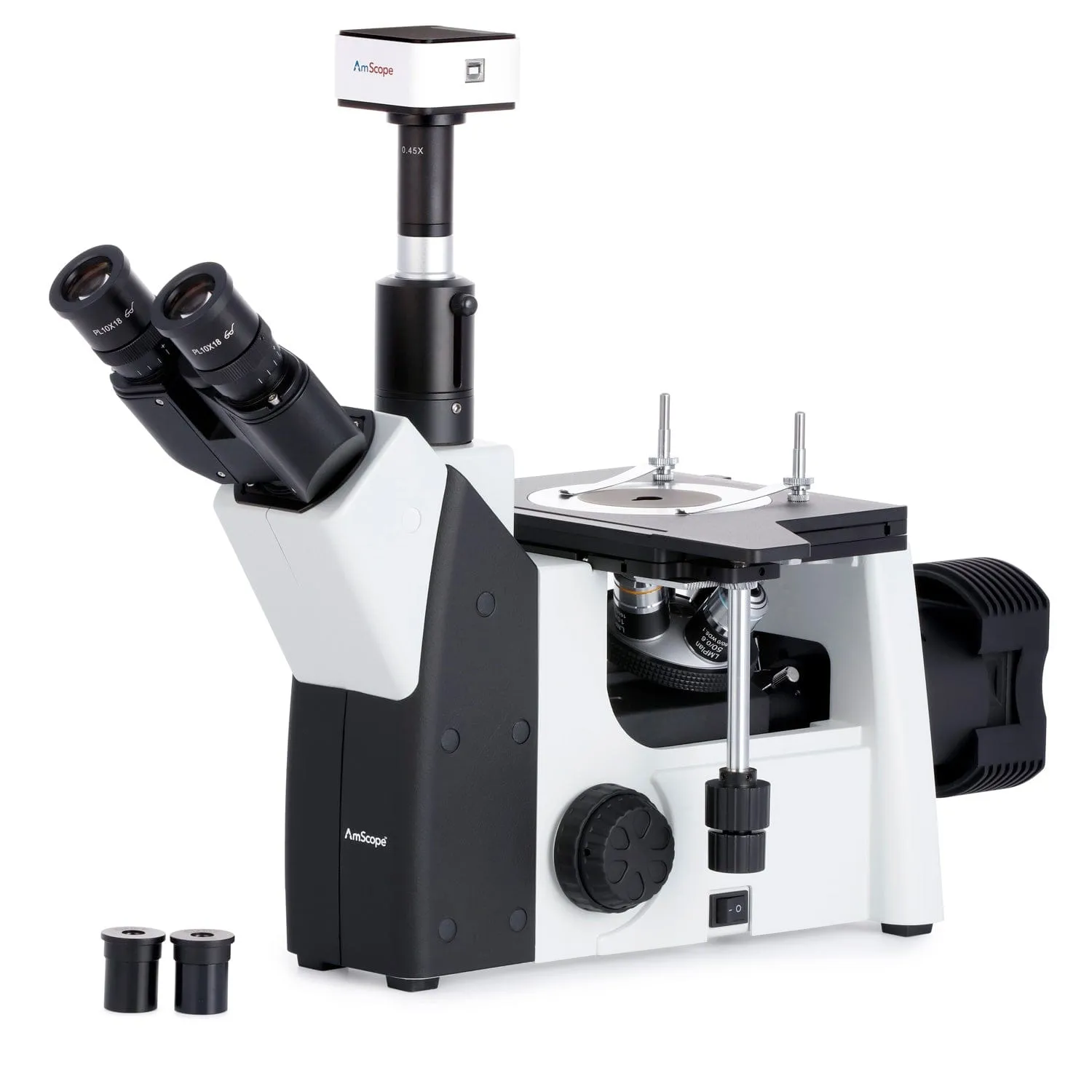

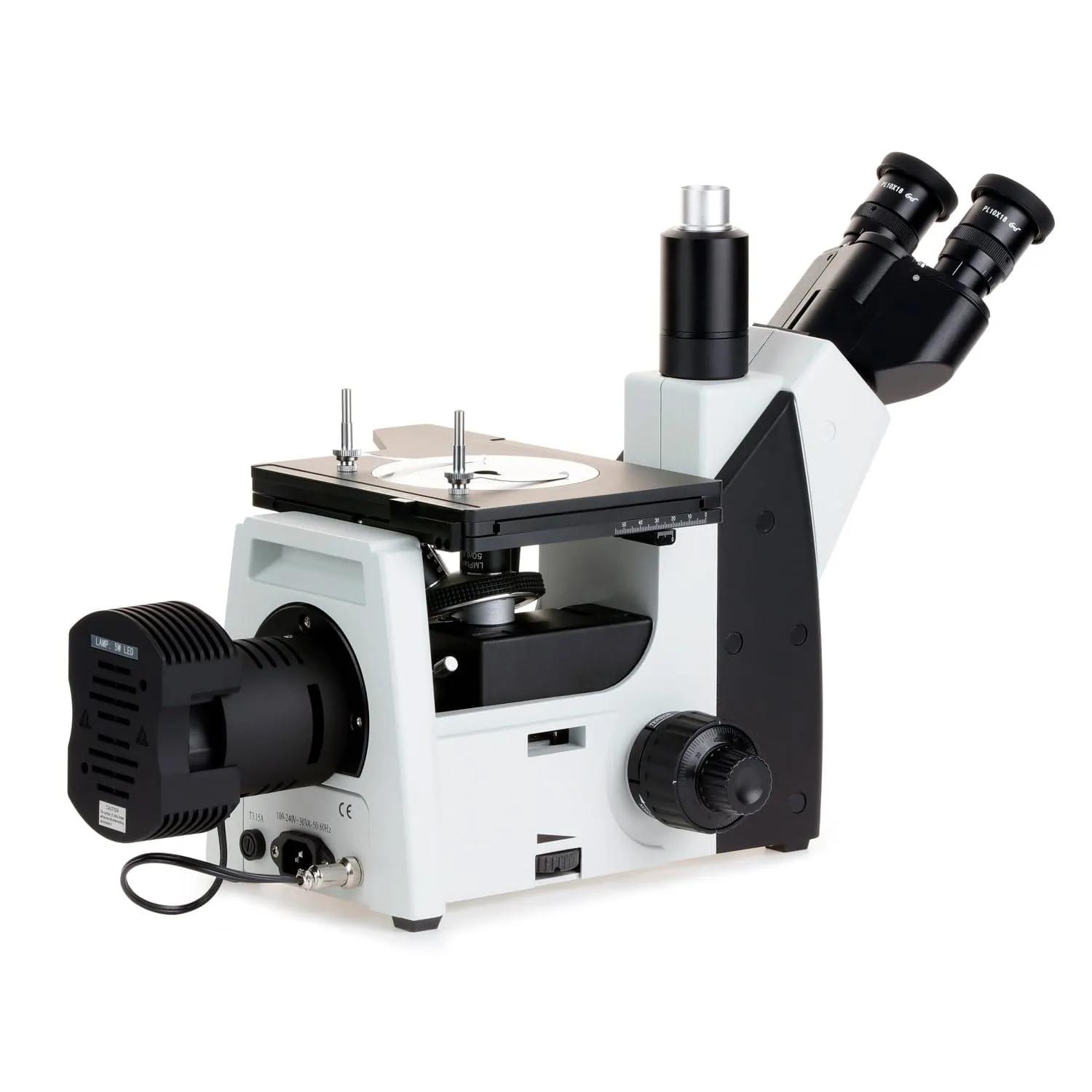

This trinocular inverted metallurgical microscope comes with four Plan Achromatic objectives, a large mechanical stage and a 5MP digital camera, offering six magnification settings, 50X, 100X, 200X, 400X, 500X and 1000X. The 5MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.
Features :
- A inverted metallurgical Plan optical metallographic microscope with digital camera
- Wide band power supply system from 90V to 240V
- Capturing 5MP still images and streaming live video on your computers
- Saving images in BMP, TIFF, JPG, PICT, PTL or other formats
- Measuring lengths, angles, areas and etc. across images
- Editing and processing microscope images in a manner similar to PhotoShop
- Quick and easy USB2.0 connection
- Fully coated optical system with high resolution
- Four DIN standard Plan objectives included
- Two pairs of Plan widefield eyepiece included

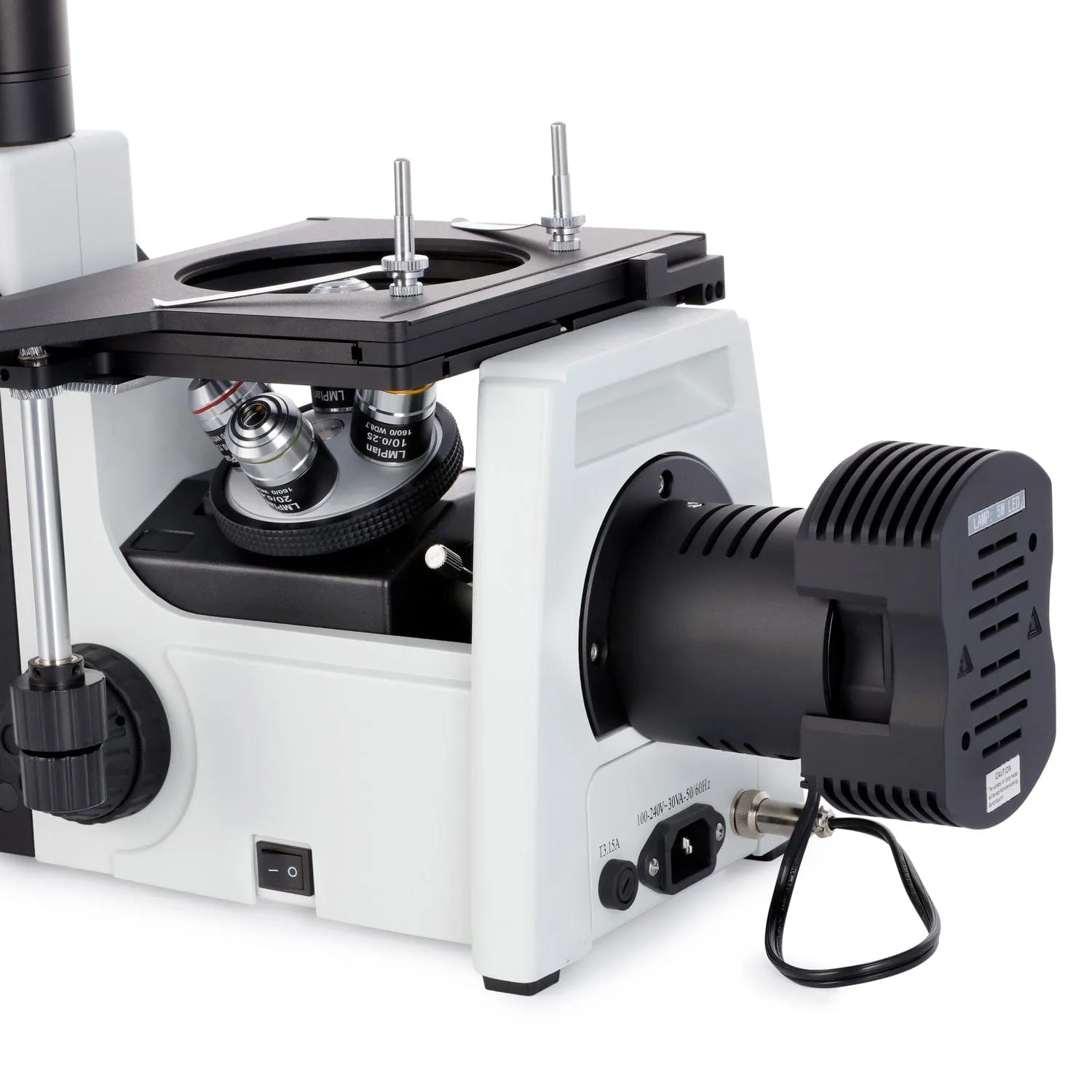

- Intensity-variable halogen illumination
- Large mechanical stage with stain resistant finish
- Coaxial coarse and fine focusing
- Focusing tension control mechanism
- Low position stage traveling controls
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical parts
- Dual side focusing controls
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain resistant enamel finish
- Dust cover included
- Manufactured under ISO 9001 quality control standards
- Excellent five (5) year factory warranty
Specifications :
- Head: 45 degree inclined trinocular
- Nosepiece: quadruple
- Focusing Range: 1-5/16" (33mm)
- Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
- Mechanical Tube Length: 6-5/16" (160mm)
- Camera/Video Trinocular Port: 23mm universal/standard photo tube
- Eyepiece: WF10X (18mm Field of View), WF20X
- Objectives: Plan Achromatic 5X (0.1 NA), 10X (0.25 NA), 20X (0.40 NA), 50X (Spring, 0.65 NA)
- Stage Dimensions: 7-3/32"x 6-1/8" (180x155mm)
- Stage Traveling Range: 3-0"x 1-9/16" (75x40mm)
- Venire Division: 0.00004" (0.001mm)
- Illumination: 5W LED, 90V-240V wide band, CE certified
- Shipping Weight: 30 lbs
Camera Specifications:
- Image Sensor: Micron (color)
- Sensor Type: CMOS
- Sensor Size: 1/2.5"
- Pixel Size: 2.2µm
- Resolution: 5.0MP
- Frame Rate: 30 fps @ 640x480, 8 fps @ 2592x1944
- Sensitivity: 0.53V/lux-sec (550 nm)
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX

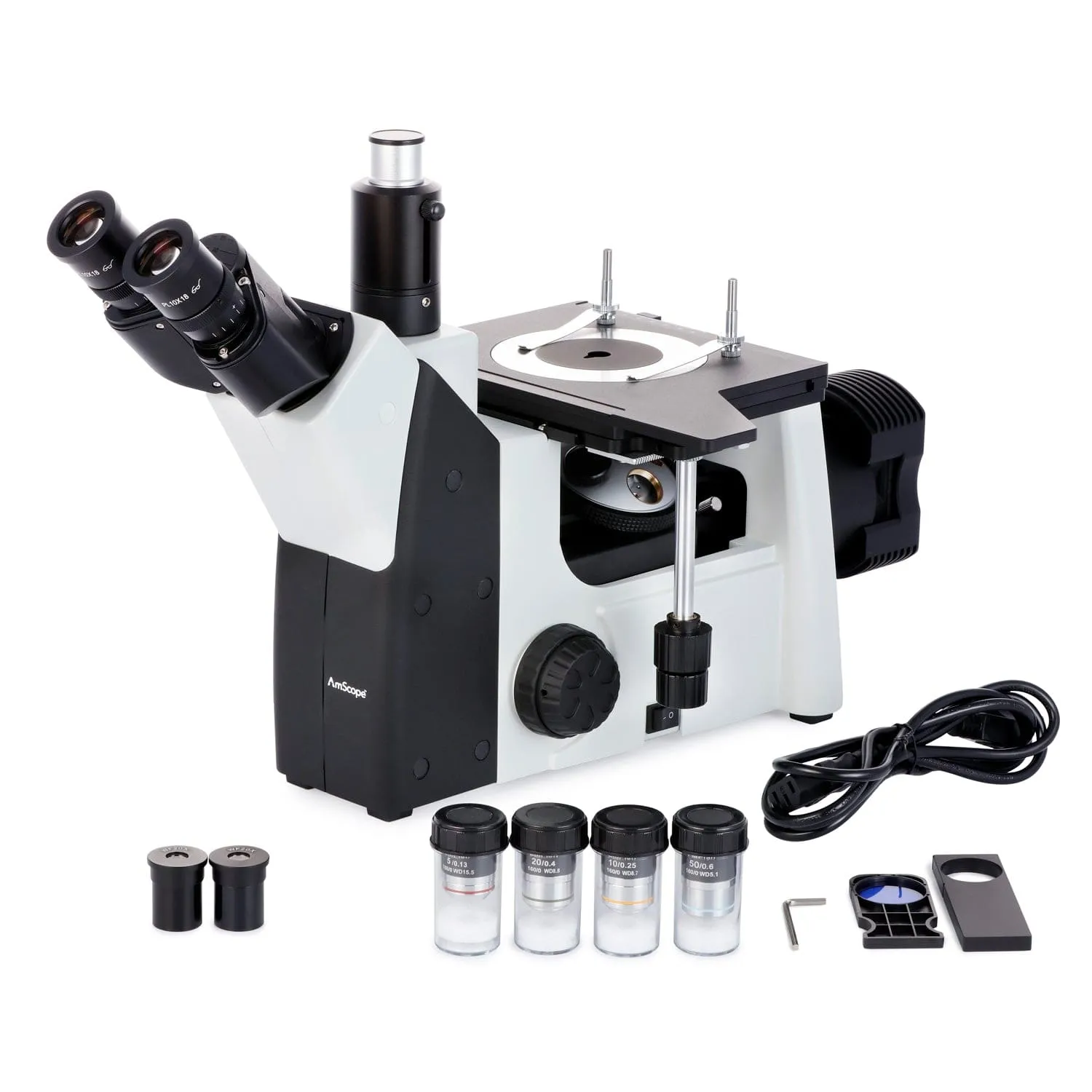

Contents:
- One Trinocular Compensation-Free Microscope Head
- One Inverted Microscope Body with Mechanical Stage and Illumination System
- One Pair of Plan 10X Widefield Eyepieces
- One Pair of 20X Widefield Eyepieces
- Four Plan Achromatic Metallurgical Objectives, 5X, 10X, 20X 500X

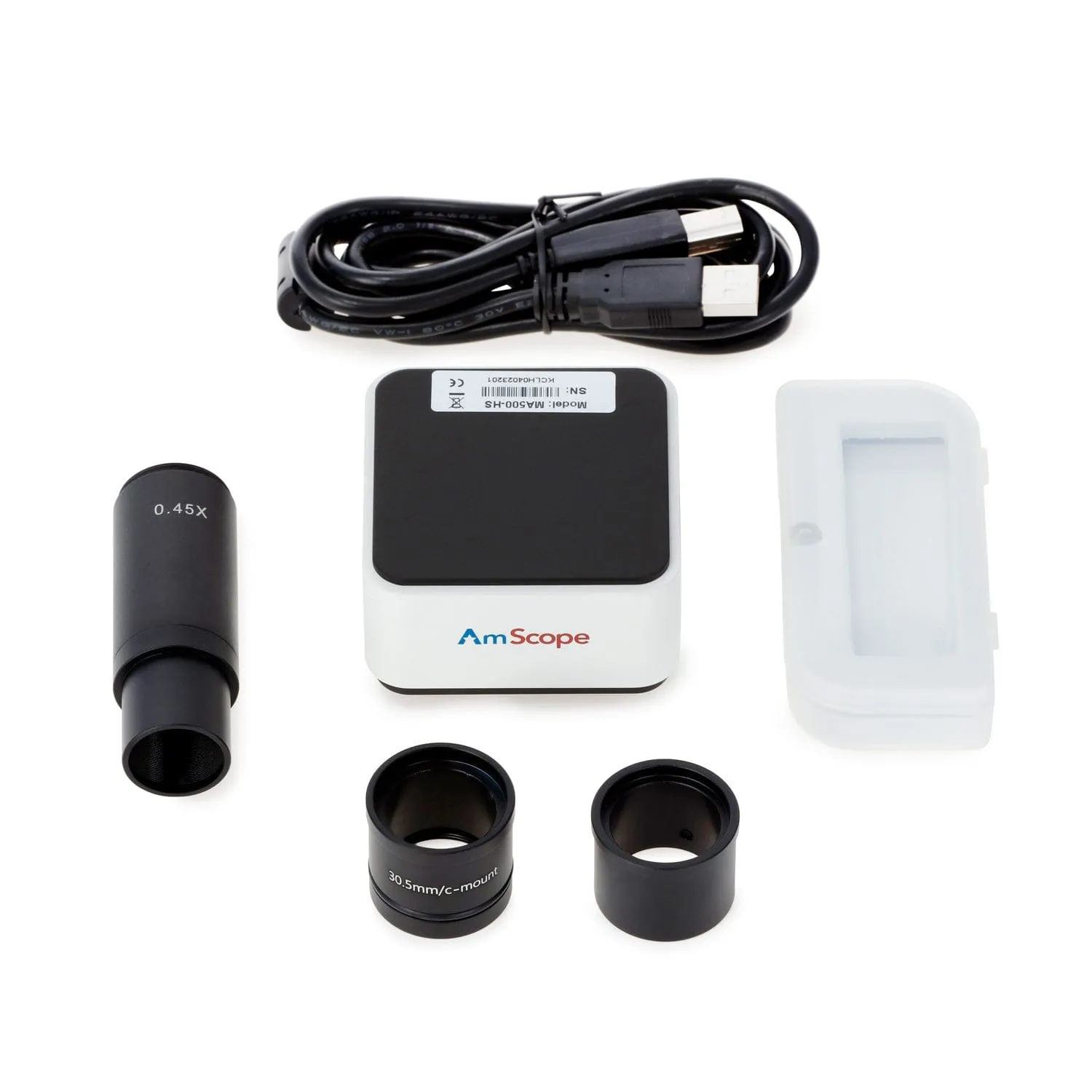

- One 5MP USB2.0 Digital Camera with Two Adapters
- One CD with Software, Driver and Step-by-Step User's Instructions
- One Power Cord
- Dust Cover
- User's Manual Download
