Features:
- External Three Phase Controller
- Control up to 3 single-phase power supply units (ASR series only)
- Makes AC output conformed to 1P3W/3P4W
- Also turns output into 3P3W via designated wire method
Accessories:
- GTL-232 x 3: RS232C cable, approx. 2m
- GTL-110 x 3: BNC test lead, approx 1.1m
- GTL-246 x 1: USB Cable (USB 2.0 Type A- Type B Cable, Approx. 1.2m)
- 40WC792030011 x 3: C1/C2/C3 Cable, 4m Max Length, UL1015 12AWG, RV5-5, Hirose DF22-4S 7.92C(28) 3P DF22A-1012SCF

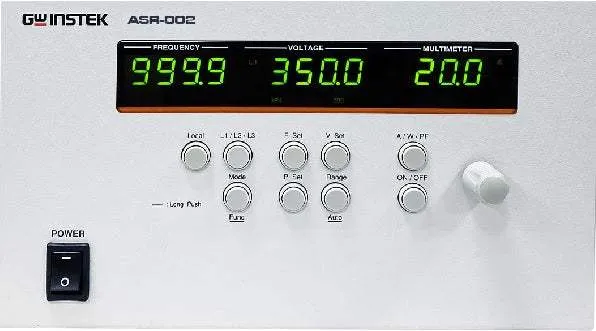

The Instek ASR-002, which is a three-phase power controller, is able to control up to 3 single-phase power supply units (ASR series only).
It effectively makes AC output conformed to 1P3W/3P4W that generally nunit requires, and also turns output into 3P3W via designated wire method.
When the select single-phase power is greater than the capacity of 2kVA, it is suggested that output should be connected to the external terminal for safety consideration.
When connecting the ASR series to ASR-002 to supply three-phase power, the following functions are limited.
1) No DC Output (100% of Rated Power).
2) Measurement Items: only current(A), power(W) and PF for each phase.
3) No voltage and current Harmonic Analysis (THDv, THDi)
4) No Remote Sensing Capability
5) No Arbitrary Waveform Function
6) No Sequence and Simulation Function (up to 10 sets)
7) Interface: only support USB
8) Not supported Built-in External Control I/O
9) No memory Function (up to 10 sets)
10) No LAN port (Built-in Web Server)
