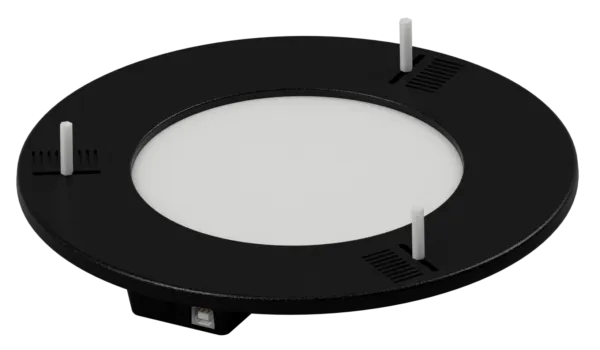

Pegasus Astro's new LED flatfield panel provides a uniform source of illumination up to 150mm and produces high-quality flat field frames for astrophotography and photometric captures.
It can be used for telescopes up to 6 inches
Description
Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters
A carry bag is in the package allowing you to easily transfer the FlatMaster 150 to any location.
Unity Platform allows you to set filter names and store / retrieve brightness levels of your FlatMaster panel
- 1 x FlatMaster 150 (suitable for any telescope with apperture up to 150mm or 5.9 inches)
- 1 x Carry bag
- 1 x Cable USB2 Type B 1.8m
Specifications
| Type | Led Light Panel (White) |
|---|---|
| Dimmable | Yes – (0-100%) |
| Material | Strong black ABS plastic |
| Manual Push Button | Different brightness levels |
| Usable diameter of circle | 150mm / 5.9 inches |
| Power requirements | 5V DC provided by USB mini cable (500mA max current) |
| Size | Diameter 250mm x 8mm thickness |
| Weight | 350g |
