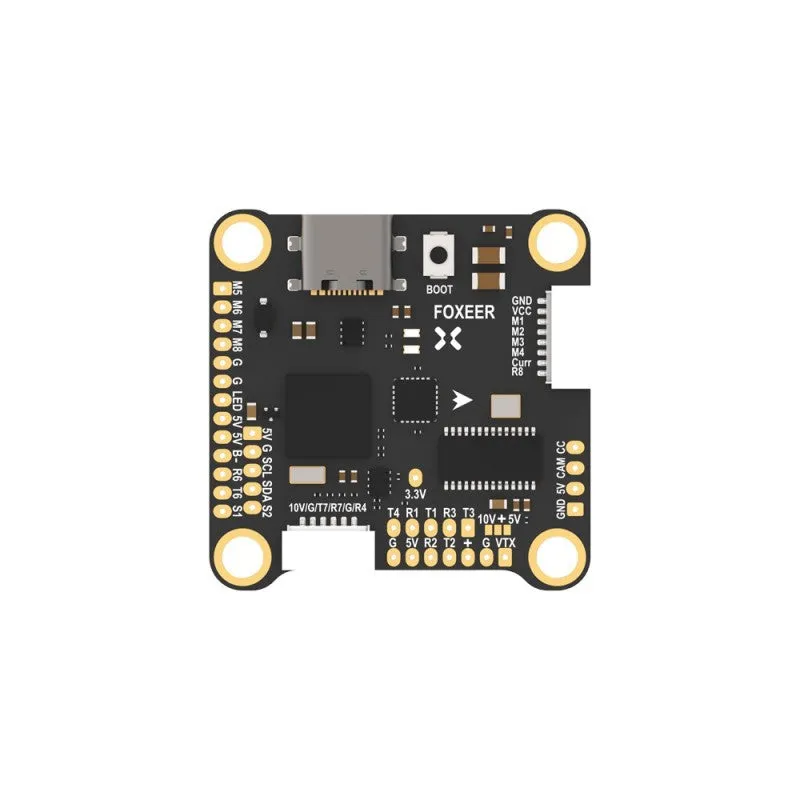

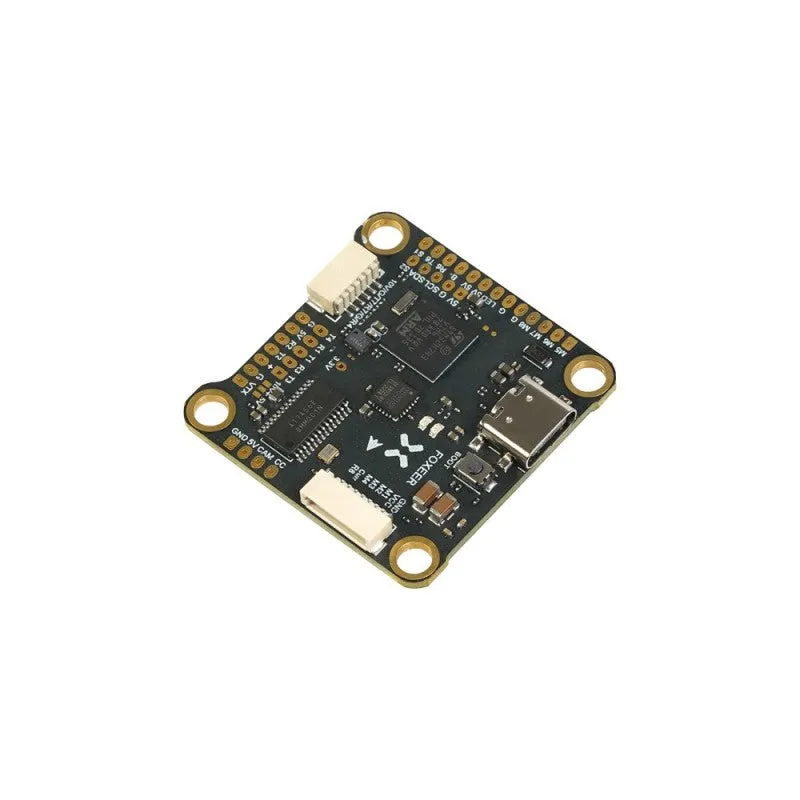

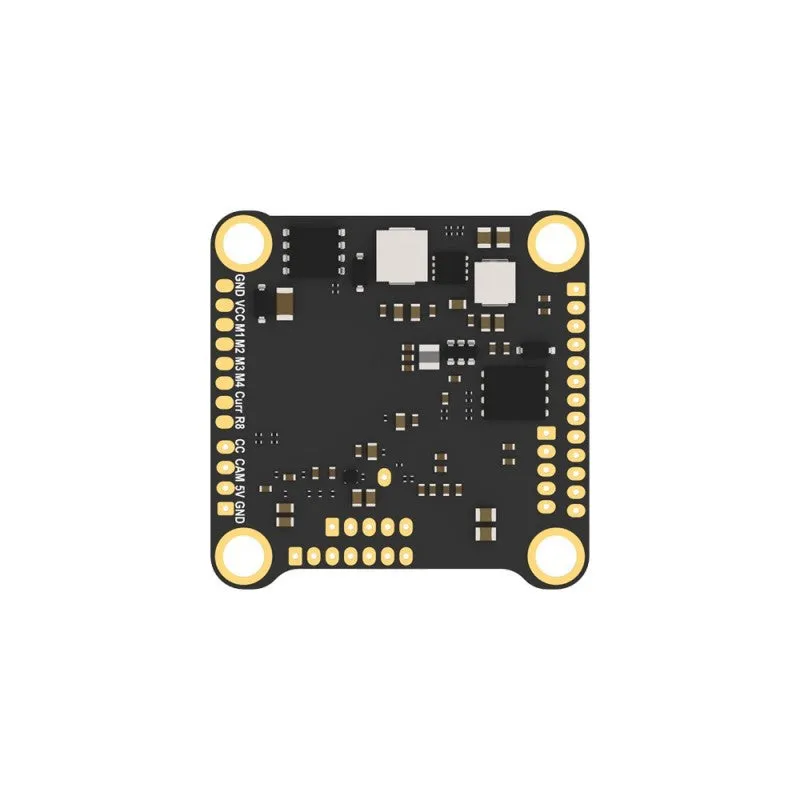

Product Details
＋
The Foxeer H7 features 32KHz processing power, MPU6000 gyro, 6 sets of UARTs, 8 Motor channels, and is capable of running on 4-8S power!
Specifications
- CPU: FOXEERH743
- Gyro: MPU6000
- Barometer: DPS310
- Power Supply: 4~8S Lipo
- BEC Output: 3.3V/0.5A;DC5V/2A;DC10V/2A
- OSD: BF OSD
- Black Box: 16M Flash Memory
- UART: 6 Sets Rx8
- ESC Telemetry: RX8
- Buzzer: YES
- Connector: DJI/HDZero
- Smart Audio: YES
- LED: 1 Set 2812 LED
- USB: Type-C
- Servo: S1,S2
- X8: Supported
- Firmware: BetaFlight: FOXEERH743 ； Ardupilot
- Working Temperature: -20℃ ~ 55℃
- Working Humidity: 20～95%
- Storage Temperature: -20℃ ~ 70℃
- Size: 37X37mm
- Mounting Hole: 30.5X30.5mm,Φ4mm
- Weight: 7.8g
Includes
- 1x H7 4-8S 30x30 Flight Controller with MPU6000 and Barometer
- 4x Rubbers Columns
- 1x Cable
