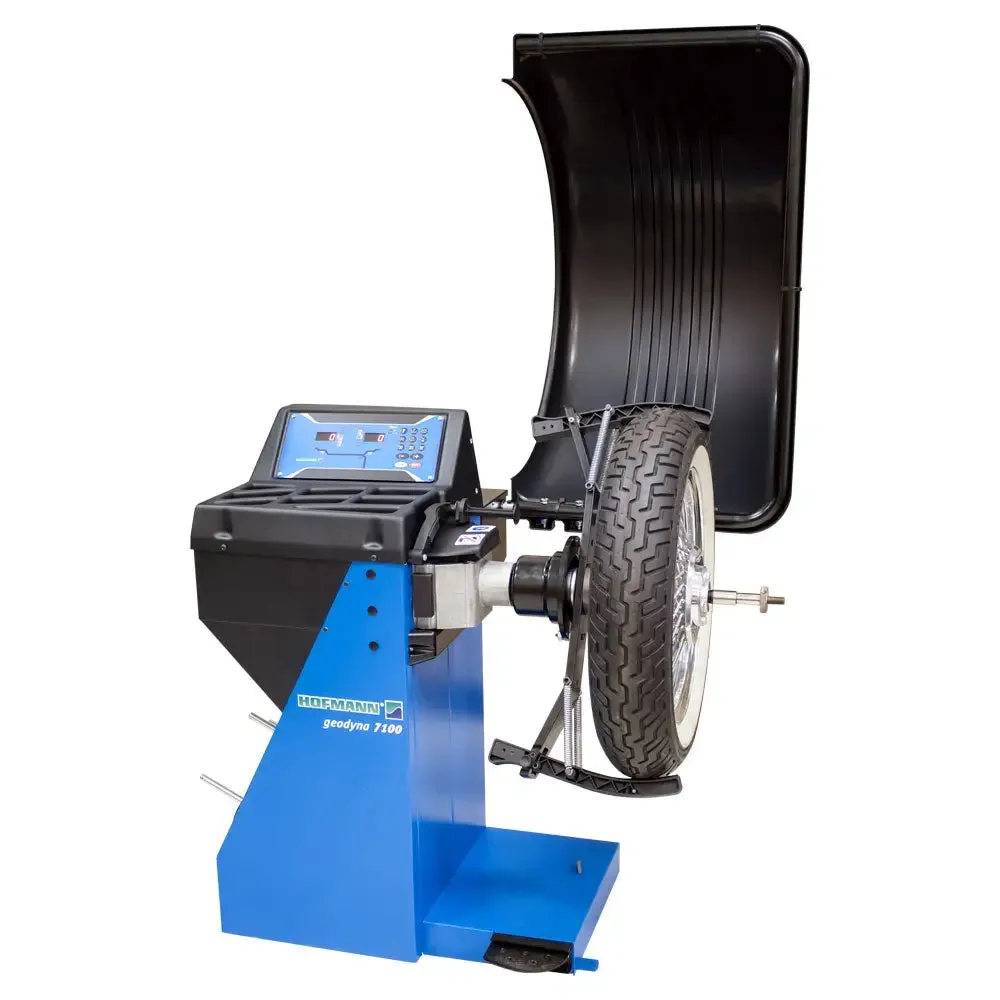

Looking for a top-quality motorcycle wheel balancer? Look no further than the Hofmann Geodyna 7100M! This top-of-the-line balancer is perfect for service stations and garages with small tire service volume and combines high accuracy with a small footprint. Don't miss out on this great opportunity!
Gauge Arm: Semi-automatic data entry and positioning of adhesive weights.
Oversize Shaft: The 225 mm length allows stud-hole flanges and accessories for almost every rim type.
Split Weight Mode: Hides adhesive weights behind two adjacent spokes so they cannot be seen outside.
Quickbal: 30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.
Vpi (virtual Plane Imaging) Technique: Measurement system for high precision and repeatability.
Features:
- This motorcycle wheel adaptor is universal so that it will fit any bike!
- This product has a small footprint, so it will fit any shop.
- Semi-automatic input of offset and rim diameter via 2D SAPE
- Allows input your rim width manually
- The LED display is eye-catching and easy to use.
- Imbalance minimization and optimization programs
- VPM measurement technique provides uncompromised accuracy
- QuickBal for reduced measurement time: Short start-stop cycle (6.5 s/15" rim)
- Measuring speed < 100 rpm
- Wheel guard to protect the operator from flying debris
- Clamping of the wheel on integrated flange with quick nut
Specs:
Motorized: YesWheel clamping: Quick nut
Measuring speed: < 100 rpm
Angular resolution: ± 0,35deg.
Length of shaft: 225 mm
Start/Stop balance time - Check spin: 6s
Rim diameter range: 8in - 32in
Offset range: 1in - 20in
Rim width range: 1in - 20in
Max wheel diameter: 37.8 inch
Max. wheel weight: 154 lbs
Input power (amperage): 1.1 A
Ref No.:
7100M (Motorcycle Model)
MC7100M
7100 / EEWB761AE1 (Car/LT Model)
EAA0260D80A (MC Adapter)
Application:
MotorcycleIncludes:
Wheel BalancerMotorcycle Adapters (No Quicknut)
6 Adapter Sets
