The Solar Elite System is a complete power system ideal for full-time RVers. Similar to our , this system includes all solar, inverter, installation hardware and smart battery components required to have the charging capability from both solar and shore power.
It features two powerful solar modules that produce 400 watts solar charging power and will charge your battery with up to 18 amps of charging current. The Solar Elite also includes our 2000 watt Inverter Charger, a supreme all-in-one unit that combines 2000 watts of pure sine wave AC power with a built-in battery charger and transfer switch.
This system can be to accommodate up to 600 watts of solar. Extend your weekend stay and enjoy dry camping freedom without the need for a generator.
*Best paired with Battery Power, or Power.

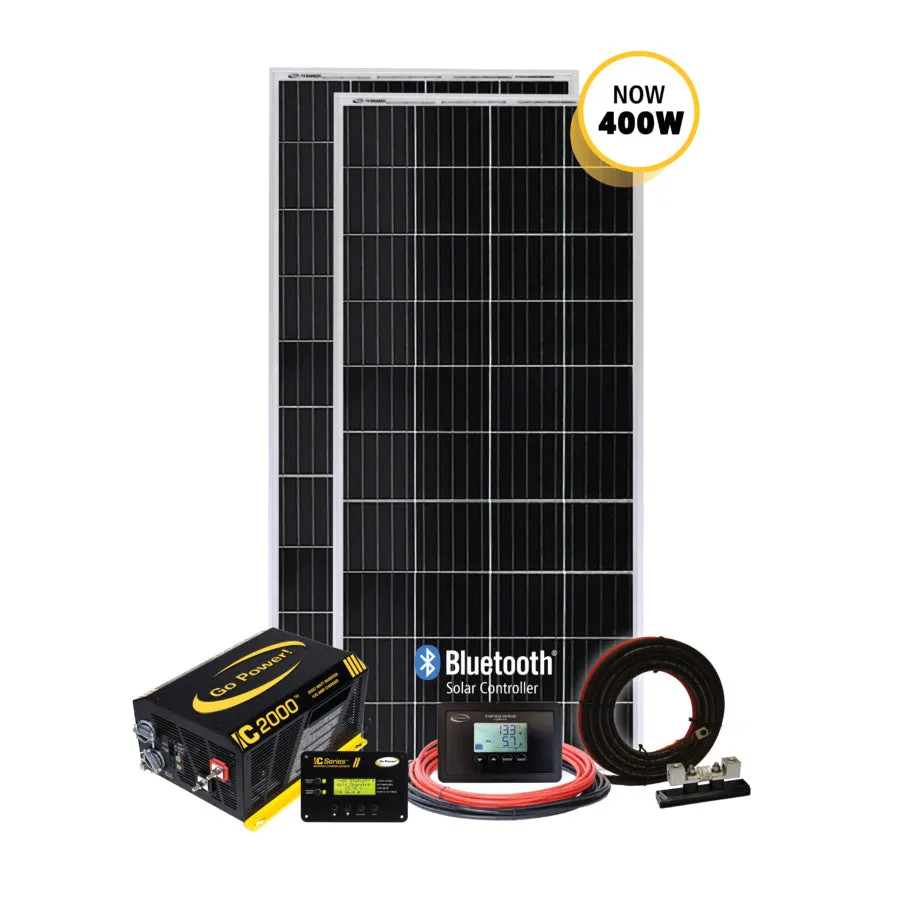

Included in the Solar Elite System:
-
200-watt solar charging kit 200-watt expansion kit (OVERLANDER OVERLANDER-E)
-
2000 watt pure sine wave Inverter Charger for AC power (GP-IC-2000), with built-in 100 amp battery charger and 50 amp dual leg transfer switch
-
Inverter charger remote (GP-ICR-50)
-
30-amp single-bank, Bluetooth® PWM Solar Controller (GP-SB-PWM-30BT)*
-

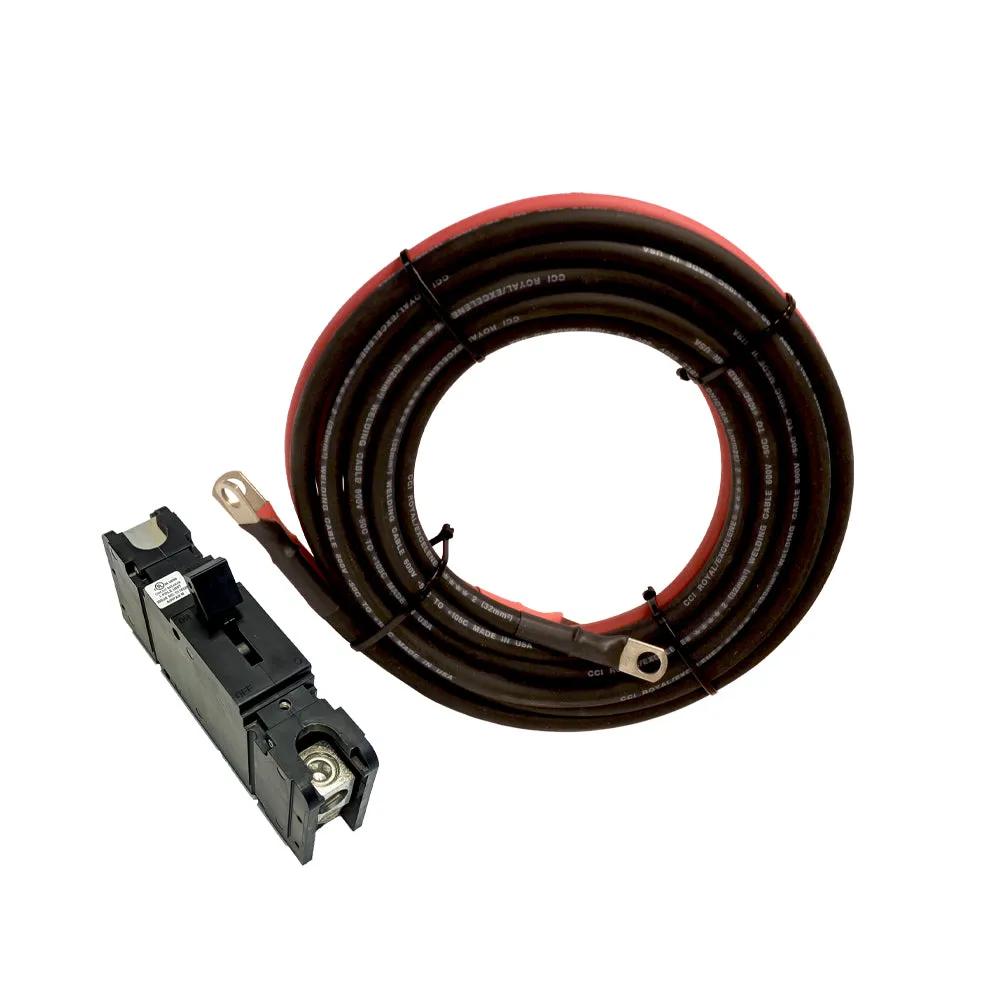

DC inverter install kit (GP-DC-KIT4)

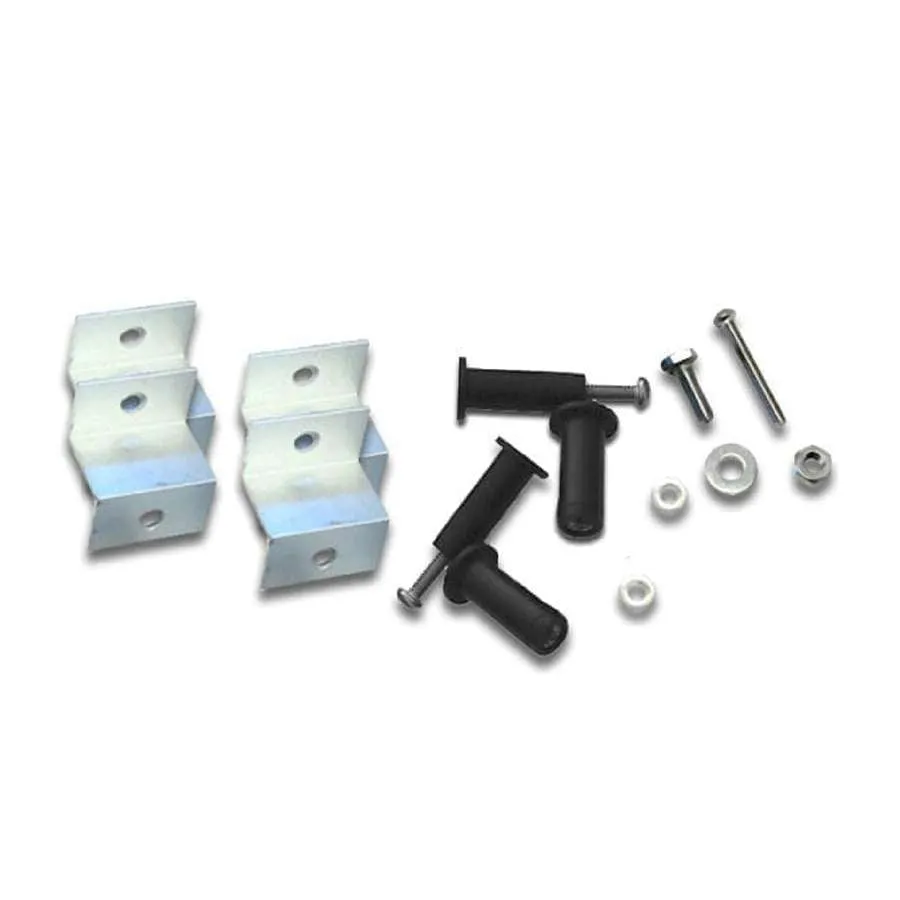

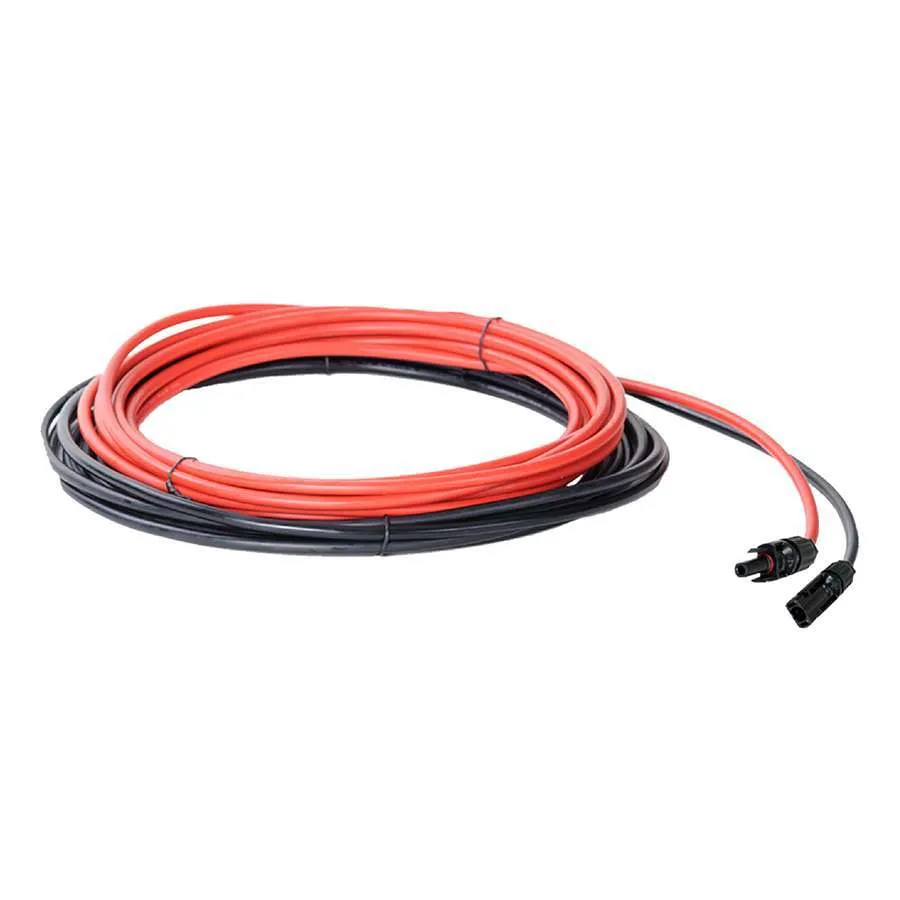

- 1 x 25′ of solar output cable (#10) red & 1 x 25’ of solar output cable (#10) black and all mounting hardware (1 x GP-MH-4-KB)

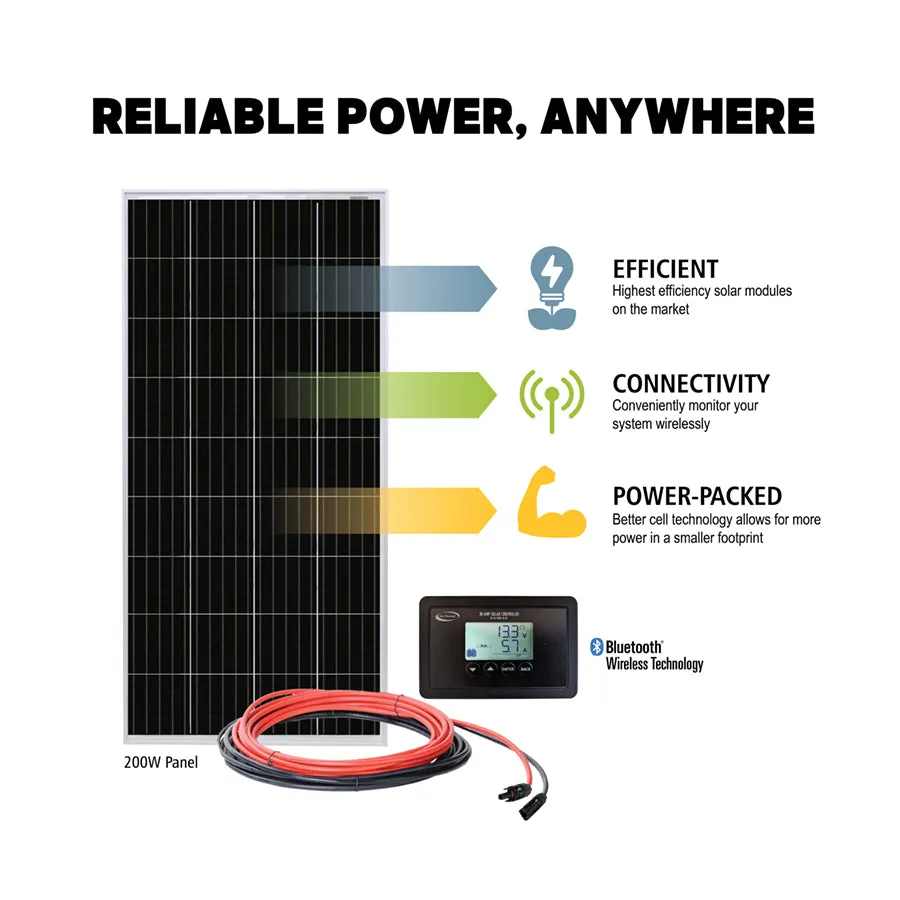

Advanced Solar Technology

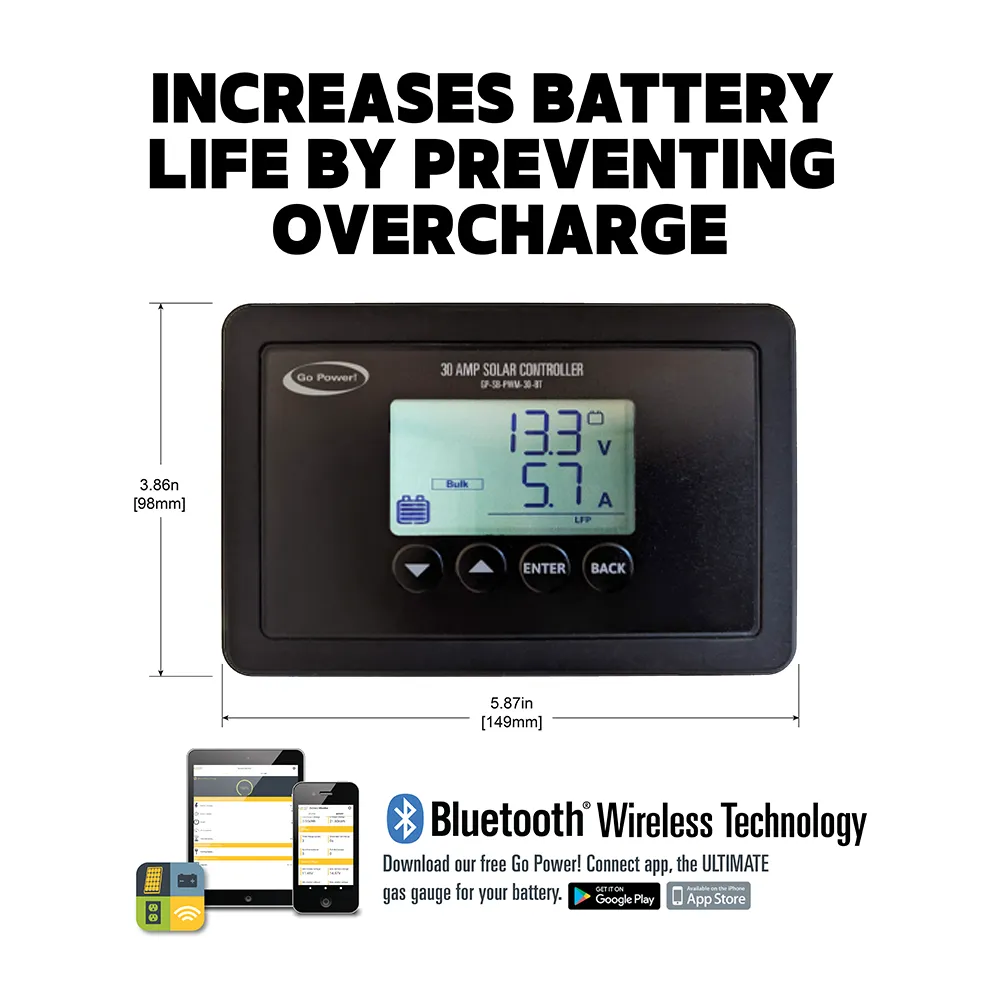

The Bluetooth®-enabled, GP-SB-PWM-30BT is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 30 amps. Easy to install with screw cover plate, and features improved Bluetooth® performance for remote system monitoring. Included in most popular kits. Available in Wired for Solar™ pre-wired RVs.
Complete Solar Inverter System Comparison
| Output power | 600 W / 27.9 A | 400 W / 18.6 A | 200 W / 9.3 A |
| Inverter power | 3000 W | 2000 W | 1500 W |
| Solar controller | 30 A, Bluetooth®, PWM | 30 A, Bluetooth®, PWM | 30 A, Bluetooth®, PWM |
| Inverter remote | On/off, LED monitoring | On/off, LED monitoring | On/off, LED monitoring |
| Smart Converter Charger | 125 A | 100 A | - |
| Transfer switch | 50 A | 50 A | 30 A |
| Inverter Fuse and Cable Kit | 400 A fuse, 4/0 cable | 300 A fuse, 2/0 cable | 200 A fuse, #2 cable |

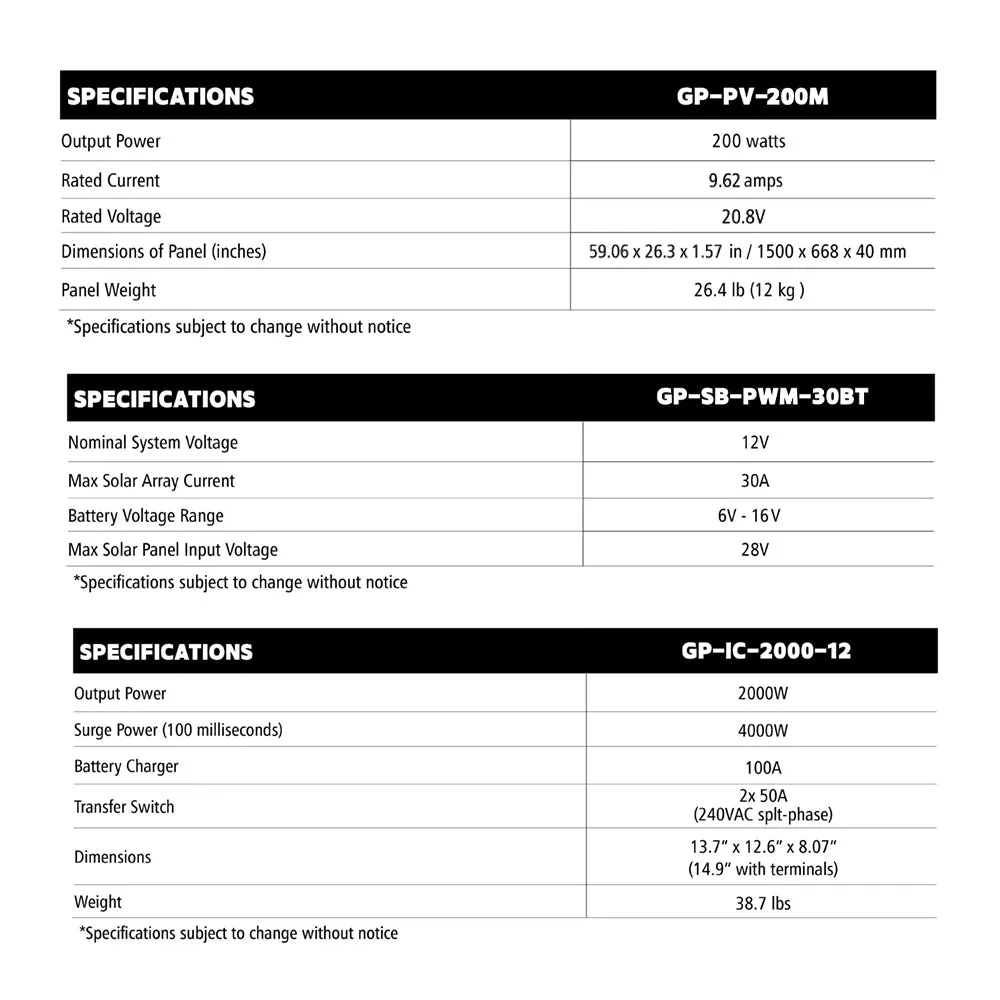

SPECIFICATIONS
Solar Modules and Controller
| Solar cell type | Monocrystalline |
|
Output power
|
400 W
|
|
Rated current
|
18.6 A |
|
Rated DC voltage
|
18.6 V
|
| Open-circuit voltage | 24.09 V |
| Module efficiency | 16.4% |
| Connectivity | MC4 connectors |
| Solar controller | 30 A Dual Bank, Bluetooth®, PWM, multi-battery option, 4 stage charging, digital display, and flush mount |
| Frame type | Clear anodized aluminum frame |
| Certifications | CE |

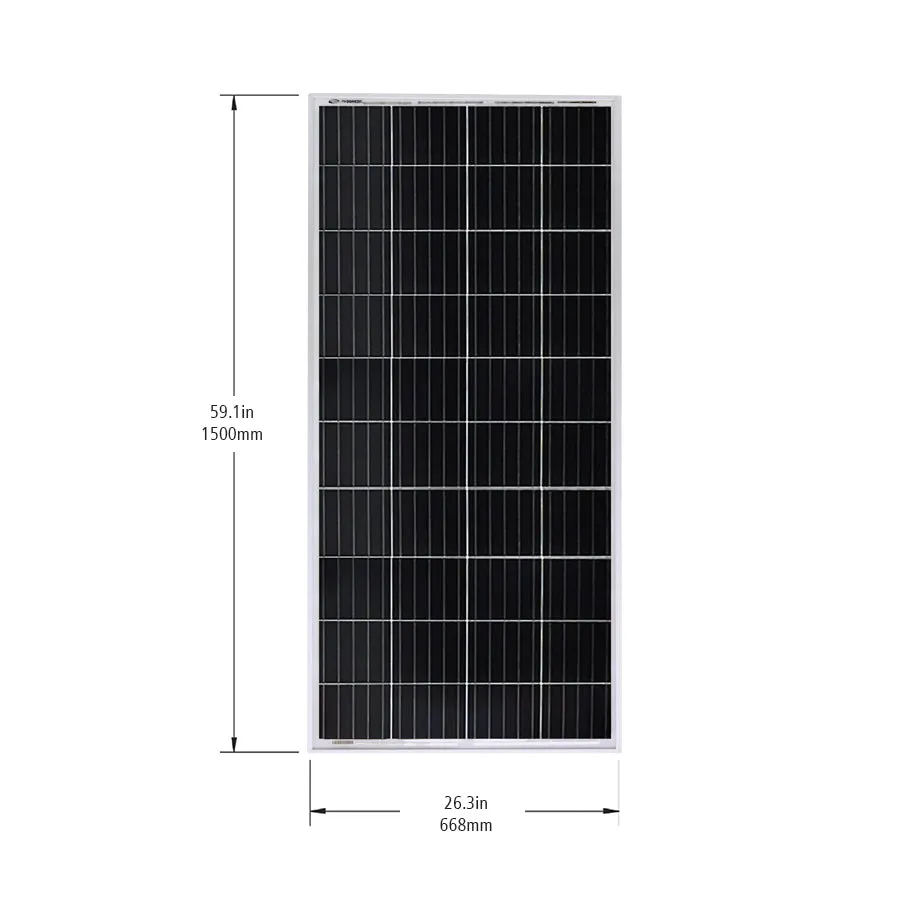

| Dimensions (each) | 59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm |
|
Weight (each)
|
32 lbs / 14.5 kg
|
|
Warranty
|
25 years power output (module) / 5 years (controller)
|
Inverter, Fuse Kit and Remote
|
Output waveform
|
Pure sine wave
|
| Continuous output power | 2000 W |
| Surge rating | 4000 W |
| Inverter voltage (DC) | 12 V |
| Output voltage (AC) | 110 VAC RMS |
| Input voltage (DC) | 10.5 - 16 VDC |
| Remote | On/off switch, LED monitoring and flush mount |
| Fuse Kit | 2/0 cable and 300 A inverter fuse |
| Certifications (inverter) | CE, FCC |
| Dimensions | 16.6 x 8.2 x 6.5 in / 422 x 208 x 166 mm |
| Weight | 19 lbs / 8.6 kg |
| Warranty | 3 years |
Smart Converter Charger (built-in)
|
Current
|
100 A
|
| Output voltage (DC) | 5 - 16 VDC |
Transfer Switch (built-in)
|
Current
|
2 legs at 50 A each
|
| Electrical rating | 240 V split-phase |
