T-SoM: The heart of your asset-tracking solution
T-SoM is a powerful, configurable, and extensible IoT System-on-Module (SoM) that provides a MCU, GNSS, and advanced peripherals in a compact form factor. T-SoM works out-of-the-box with the Particle Tracking Services software suite that provides location, configuration, and edge application services to all Particle Tracker devices. Together, T-SoM and Particle Tracking Services provide an accelerated starting point to organizations that require a tailored tracking solution for sophisticated applications as well as a fully certified foundation for original equipment manufacturers developing commercial products.
What's included?
- T-SoM evaluation board (x1)
- T-SoM (x1), soldered to evaluation board
- Cellular antenna (ANTCW2EA)
- Li-Po battery
- Grove temperature sensor
- u.FL to SMA adapter
- USB cable
- Accessories (jumper pins, adhesive standoffs)
Technical Specifications

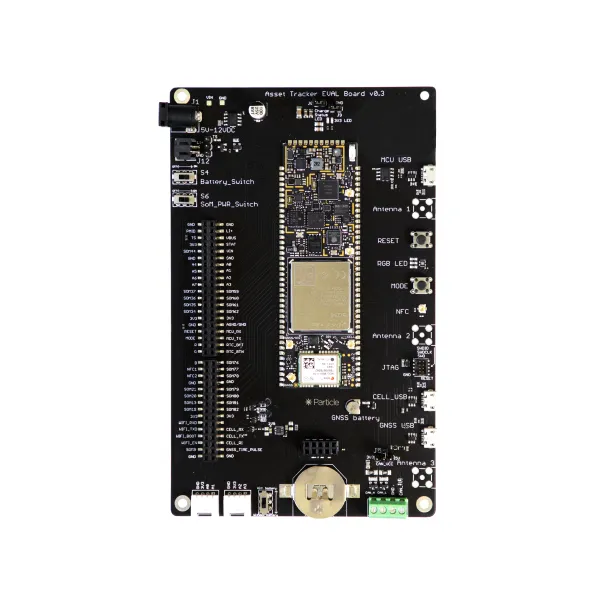

The T-SoM Evaluation board includes the following breakouts:
- u-blox GNSS USB connection
- Quectel cellular modem USB connection
- JTAG/SWD debugging connector for nRF52 MCU
- NFC antenna breakout (u.FL)
- MODE and RESET buttons
- RGB status LED
- USB for debugging
- Power and charge status LEDs
- JST connector for Li-Po battery power
- Switches for USB, battery power, and RTC
- Full GPIO expansion
- Grove connectors (x2)
- RTC coin-cell battery connector
- CAN data connection (with 3V3 power output)
