Features:

• Compatible with FLIR® AX8 Cameras
• Monitor 1 to 7 Cameras
• Configure Alarms via built-in Web Server
• Digital Outputs (24 VDC)
• 4-20 mA Outputs
• Ethernet Connectivity

Applications:

• Critical Vessel Monitoring
• Condition Monitoring
• Process Monitoring
• Early Fire Detection

Specifications:

• Maximum Cameras Supported: 7
• Ethernet Connection:  100Base-T
• Communication Protocol: Modbus TCP/IP
• 4-20 mA Transmitter Channels: 8 CH, Loop Powered, Isolated
• Digital Output Channels: 8
• Digital Output Current: 0.5A per Channel, 1.5A All Channels
• Digital Output Voltage: 10 -30 VDC
• Power Supply Voltage: 24 VDC
• Maximum Power Consumption: 7 W
• Dimensions: 8.8 x 3.9 x 1.2 in (223 x 99 x 31 mm)
• Weight: 0.7 lbs (0.32 kg)
• Enclosure Material: Anodized Aluminum

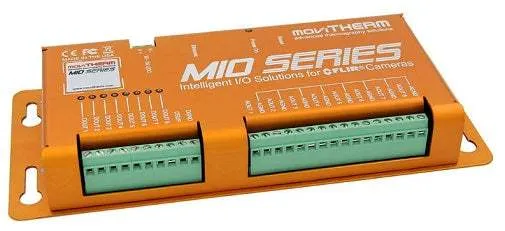

The MIO Series Intelligent I/O solutions are designed to turn FLIR thermal imaging temperature sensors into complete remote monitoring systems. Easy to set up and easy to configure, the MIO Series is your remote monitoring solution for process control, condition monitoring, and fire prevention.
