Product Details

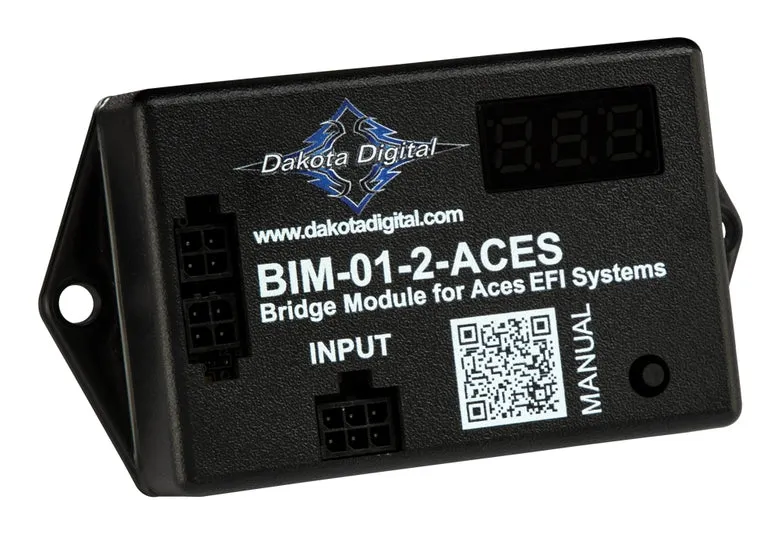

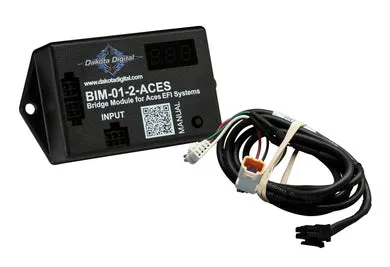

The BIM-01-2-ACES is designed to decode the information provided by the  Killshot, Jackpot Pro and QuickDraw kits and supply this information to the VFD3, VHX, HDX, RTX and GRFX control box instrument systems only.  Information present is dependent on ACES application and add-ons selected.  Due to the various ECM's, additional data add-on's from ACES may be available such as Vehicle Speed, and Transmission Temp.

Always available:
Tachometer
Engine Coolant Temp
Oil Pressure
Intake/ Manifold Temp.
Fuel Pressure
Air/ Fuel Ratio
MAP/ Boost

*Compatible Dakota Digital instrument system: VHX, HDX, GRFX, RTX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness.   Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.

Dakota Digital ACES EFI Interface BIM Module
  • DefaultTitle

$ 55.29

$ 42.53
